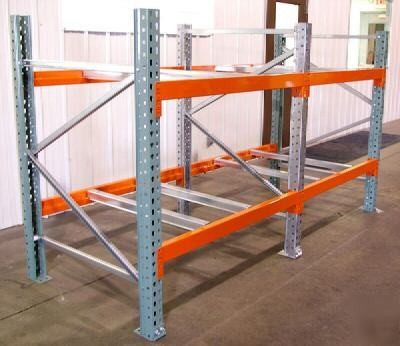

    Buy cheap High Capacity Teardrop Racks Selective Q253 Steel Galvanized Finishing from wholesalers

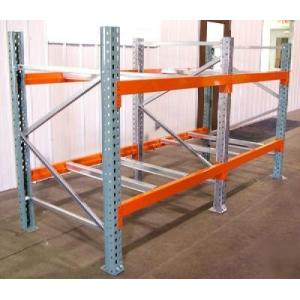

    Buy cheap High Capacity Teardrop Racks Selective Q253 Steel Galvanized Finishing from wholesalers
    • Buy cheap High Capacity Teardrop Racks Selective Q253 Steel Galvanized Finishing from wholesalers

    High Capacity Teardrop Racks Selective Q253 Steel Galvanized Finishing

    Ask Lasest Price
    Brand Name : EBILTECH
    Model Number : EBIL-TECH-TDPR
    Certification : CE
    Price : US $1-1.5 / Kilograms | 1 Kilogram/Kilograms (Min. Order)
    Supply Ability : 12000 T/Month
    Delivery Time : 15 woking days
    • Product Details
    • Company Profile

    High Capacity Teardrop Racks Selective Q253 Steel Galvanized Finishing

    USA Powder Coating Selective Heavy Duty Q253 Steel Teardrop Pallet Rack
    Product Description

    Beam Features:

    1) Spring Automatic safety locks

    2) Both Step beam and Box beam are available.

    3) Special 3 or 4 rivets beam brackets

    Upright Features:

    1) C type Section and Omega type are available

    2) Frame Bolted or weld

    3) Steel thickness is 15ga, 14ga, 13ga

    Foot plate Features:

    Both Standard Foot Plate and Seismic Foot Plate are available.

    Advantages of our Teardrop Style Pallet Racking:

    • Teardrop Pallet racking has 2 beams pitch for optimum capacity & space utilisation & the end frames are 14Ga and 13 Ga thickness, and beams are 14Ga and 16Ga both available.
    • Heavy Duty Shaved Rivet Connectors, please note 3 shaved rivets not 2. We also have weld style unpainted universal(No right and lefy hand) one does it all.
    • The Frames are bolted together for maximum bearing capacity & have the advantage to be able to adapt to changing circumstance. We can also supply the weld type use for earthquake area.
    • With the use of galvanised mesh panels or pallet Support Bars, Teardrop pallet racking can be conveniently conveyed to high capacity shelving in North America Market.
    • Connector and Safety Clip. Note the high quality stamp in the rivet head and even the safety rivet.
    • We care about Quality and how our product looks. We are sure your customer will also notice. And people using the items will like NO SHAPE EDGES.

    Teardrop Upright:

    Upright SectionFrame StructureSteel Thickness AvailableFrame Height
    3''x 1-5/8''Welded15Ga, 14Ga, 13Ga42''48''54''60''66''72''78''84''90''96''
    3'' x 3''Welded15Ga, 14Ga, 13Ga
    3''x 3''Bolted15Ga, 14Ga, 13Ga

    Teardrop Beams:

    Beam SectionBeam Section HeightBeam Length
    Steppes Beam3'',3 1/2'', 4'', 4 1/2'',5'',5 1/2'',6'',6 1/4''48''72''92''96''100''104''108''112''
    Stepped beams with Nosed4 1/3'', 4 3/4'', 5 1/2'', 6 5/16''96''108''120''144''
    Box Beams3 1/8'',4'',4 1/3'',4 3/4'',5 1/2'',6 5/16''48''96''108''120''132''144''

    Advantage:

    1. Low MQQ: Meeting actual small requests;
    2. OEM Acceptable: We can produce you design;
    3. Good service: We treat clients as friend;
    4. Good quality: We have strict quality control system. Good reputation in the market;
    5. Fast delivery: Scientific production arrangement to ensure the fast delivery.

    Parameters:

    Loading Capacity:Up to 4,000 kgs UDL/level
    Racking Height:Up to 12,000mm
    Racking Depth:700-1200mm
    Beam Length:Up to 4000mm
    Racking Finish:Powder Coated Finish or Galvanised Finish for Frames.
    Raw Steel Code:Q235B

    For new and old import and export customer supply :


    1. Solutions simple and regular warehouse rack/metal shelving ,high-end warehouse / complete large-scale Storage logistics system(12000MT/PER MONTH) warehouse planning, conveyance equipment, various racking and storage management.; Optimize your warhouse shipshape; Economize space and cost.
    2. A professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology ;EBILTECH strictly implements ISO9001 Standard in all pperation; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
    3.Supply Specialized installation guidance and after services that anytime and any country if customer need.
    4.Reply your inquiries within 24 hours anytime and anywhere.
    Customer need is the most important;customer benefit is our benfit;our grow from company credit and working duty for our new and old customers.

    Photos of pallet rack


    High Capacity Teardrop Racks Selective Q253 Steel Galvanized FinishingHigh Capacity Teardrop Racks Selective Q253 Steel Galvanized FinishingHigh Capacity Teardrop Racks Selective Q253 Steel Galvanized FinishingHigh Capacity Teardrop Racks Selective Q253 Steel Galvanized Finishing

    Company Profile


    Jiangsu Ebil Intelligent Storage Technology Co., Ltd is a state-level high-tech enterprise, which is committed to the planning and design, system integration, project implementation and after-sales service of automatic three-dimensional warehousing and logistics of enterprises , so as to provide customers with "pre-sales, sales, after-sales" one-stop service. Boasting its own modern manufacturing base, the company provides the automated and intelligent products of logistics system, such as rack, tunnel stacker, automatic transport system, AGV, and sorting and picking. It is committed to designing the exclusive robots in accordance with customer’s demands, such as industrial robot and service robot to replace people, and developing and manufacturing military and civilian integrated series of products. The company has successfully applied for more than 20 national patents, and widely applied its products to a variety of industries, such as large machinery, electronics, electric power and grid, logistics, petrochemical industry, automobile, paper-making, furniture, coal, medicine, food, light industry, tobacco, textiles, aerospace, troops, railways, civil aviation, ports, and refrigeration.


    For new and old import and export customer supply :

    • Solutions simple and regular warehouse rack/metal shelving ,high-end warehouse / complete large-scale Storage logistics system(12000MT/PER MONTH) warehouse planning, conveyance equipment, various racking and storage management.; Optimize your warhouse shipshape; Economize space and cost.
      2. A professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology ;EBILTECH strictly implements ISO9001 Standard in all pperation; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
      3.Supply Specialized installation guidance and after services that anytime and any country if customer need.
      4.Reply your inquiries within 24 hours anytime and anywhere.
      Customer need is the most important;customer benefit is our benfit;our grow from company credit and working duty for our new and old customers.

    FAQ


    1. What makes you different with others?
    1) Our Excellent Service
    For a quick, no hassle quote just send email to us
    We promise to reply with a price within 24 hours - sometimes even within the hour.
    If you need an advice, just call our export office at 0086-25-52757208, we will answer your questions immediately.
    2)Our quick manufacturing time
    For Normal orders, we will promise to produce within 15 days.
    As a manufactory, we can essure the delivery time according to the formal contract.
    3)Our Special Export Design
    We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
    4)Our Export Experience
    We are a manufacturer which wholesales storage rack in large quantity for over 20 years.
    2. What is delivery times?
    This depends on the product. Typically standard products are delivered within 20 days.
    The delivery time of the special products is according to the time of setting up of the tooling.
    3.What is the term of payment?

    1) T/T payment.

    2) LC
    4. May I know the status of my order?
    Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
    5. Are samples available?
    Yes, we can send some sections of samples for your reference by express.
